| As Spring unfolds, our team is buzzing with activity as we release new products focused on helping you refine innovative designs and launch groundbreaking products to drive growth into 2024 and beyond. In this episode of Tech Express, we're excited to spotlight a family of products tailored for the n104 market. We introduce the X-Band hybrid couplers and directional couplers in class-leading package sizes (5mm x 3.2mm) delivering 50 Watt AVG powers and peak to average of 12dB, an all-new multi-octave 600MHz to 6GHz 3dB Hybrid coupler with power handling of 30 Watts CW and very high power (355 Watts CW) 30dB directional coupler from 800-1000MHz. These new additions will be available on our RF and Specialty Components New Products page on ttm.com. This new section on our website gives customers unprecedented access to new RF&S product developments and opportunities for early sampling and evaluation. Wishing everyone a vibrant Spring. Together, let's fuel the momentum in our industry and make 2024 a year of remarkable achievements. – Mark Bowyer
|
|
|
| |
|
|
| 25.4mm x 12.7mm Broadband 3dB Hybrid Coupler with 30 Watt CW Power Handling |
|
|
| |
|
|
| Applications:
• Ultra-broadband
• Broadband ADC in COTS Mil-Aero Radar
• L, S and C[1]Band |
|

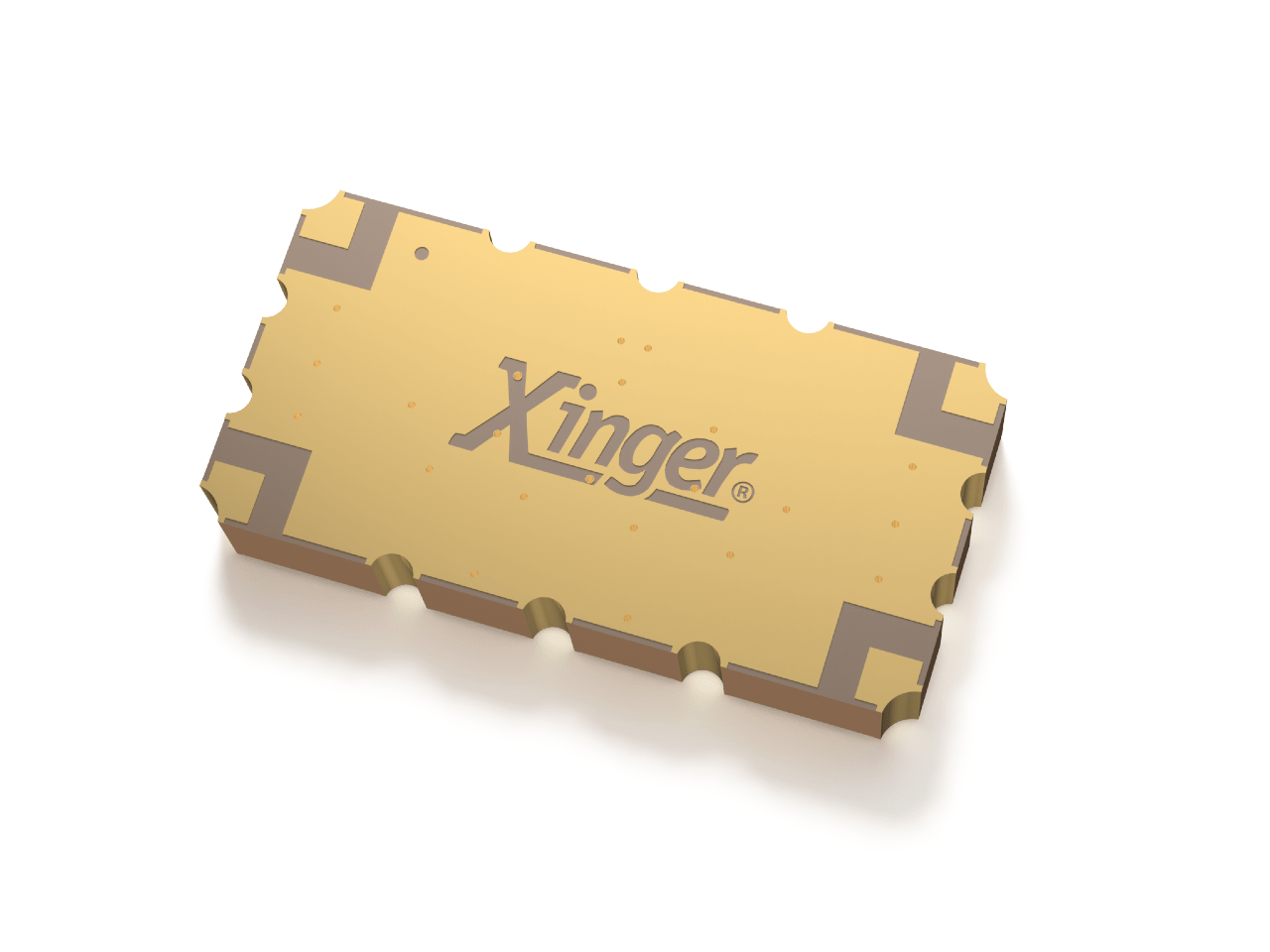

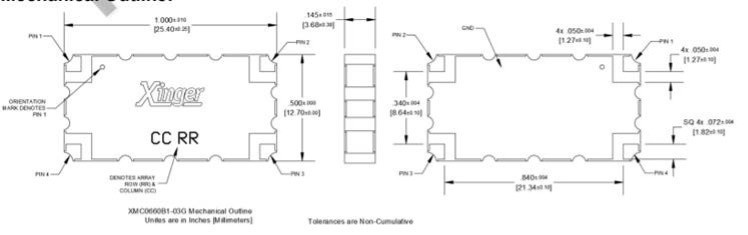

The XMC0660B1-03G is a low profile, high performance 3dB hybrid coupler, with a power rating of 30 Watts (AVG) in a new easy to use, Xinger style manufacturing friendly surface mount package. It is designed particularly for ultra-broadband use on software definable radios and Broadband ADC in COTS Mil-Aero Radar & L, S and C[1]Band applications in select end markets. The XMC0660B1-03G is designed particularly for power splitting and combining, where tightly controlled coupling and low insertion loss is required. Parts have been subjected to rigorous Xinger qualification testing and they are manufactured using materials with coefficients of thermal expansion (CTE) compatible with common substrates such as FR4, G-10, RF-35, RO4350 and polyimide. Available in 6 of 6 ENIG (XMC0660B1-03G) RoHS compliant finish. |
|
|
| |
|
|
| To access the datasheets for 3dB Hybrid Couplers, simply click on the button below. |
|
|
| |
|
|
| 25.4mm x 12.7mm High Power 30dB Directional Coupler with 355 Watt CW Power Handling |
|
|
| |
|
|

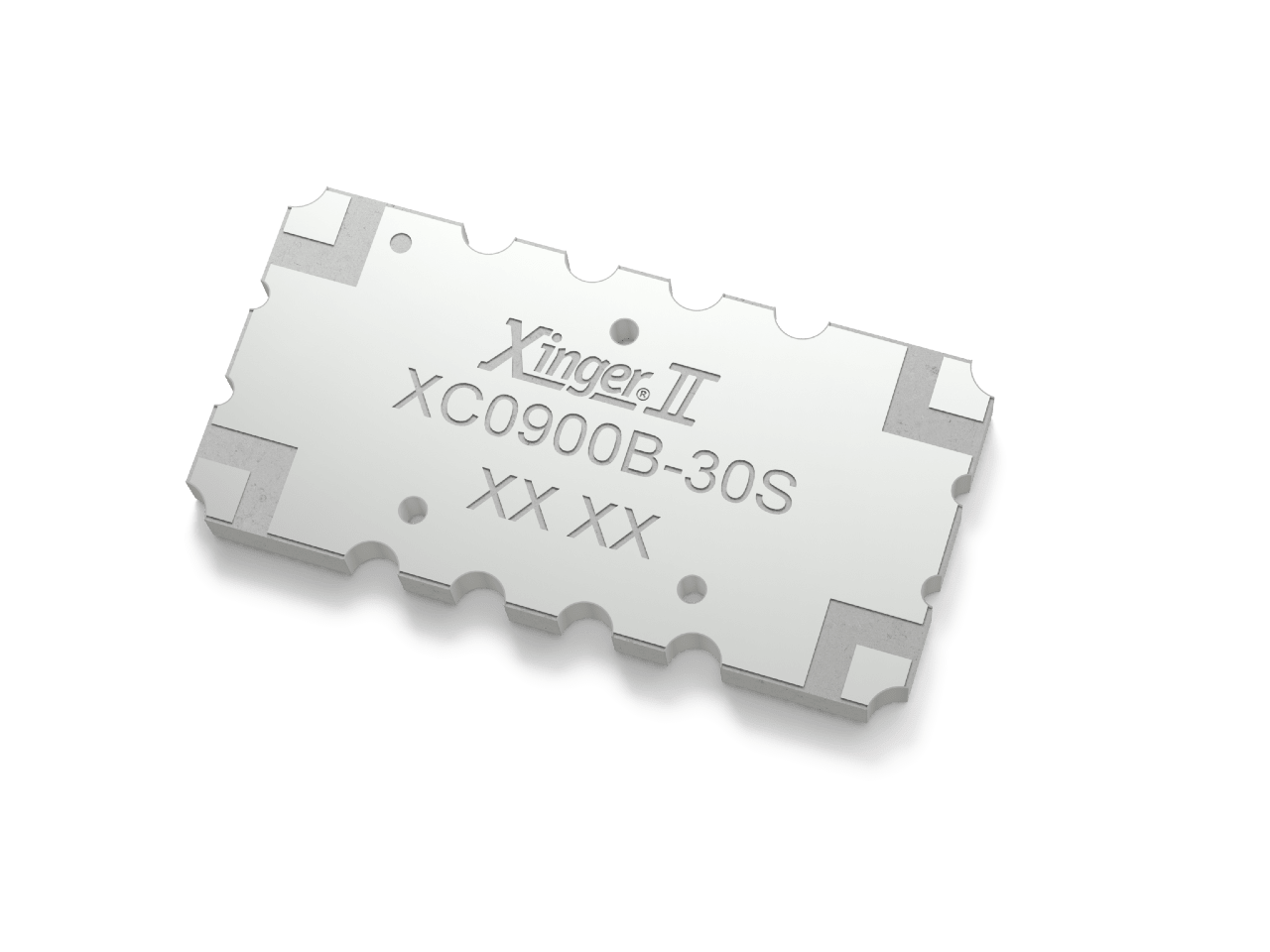

| The XC0900B-30S is a low profile, high performance 30dB directional coupler with a power rating of 385 Watts (AVG) and a peak to average ratio of 12dB, in a new easy to use, Xinger style manufacturing friendly surface mount package. It is designed for LTE, 5G Telecom and Sub-1GHz Mil-Aero applications. The XC0900B-30S is designed particularly for power and frequency detection, as well as for VSWR monitoring, where tightly controlled coupling and low insertion loss is required. Parts have been subjected to rigorous Xinger qualification testing and they are manufactured using materials with coefficients of thermal expansion (CTE) compatible with common substrates such as FR4, G-10, RF-35, RO4350 and polyimide. Produced with 6 of 6 RoHS compliant tin immersion. |
|
Applications:
• 5G Telecom
• Sub-1GHz Mil-Aero |
|
|
| |
|
|
| To access the datasheets for more Directional Couplers, Simply click on the button below. |
|
|
| |
|
|
| X-Band 8 -12 GHz 3dB Hybrid Coupler and 20dB Directional Couplers |
|
|
| |
|
|
| Applications:
• X-Band (8-12GHz) COTS Mil-Aero |
|

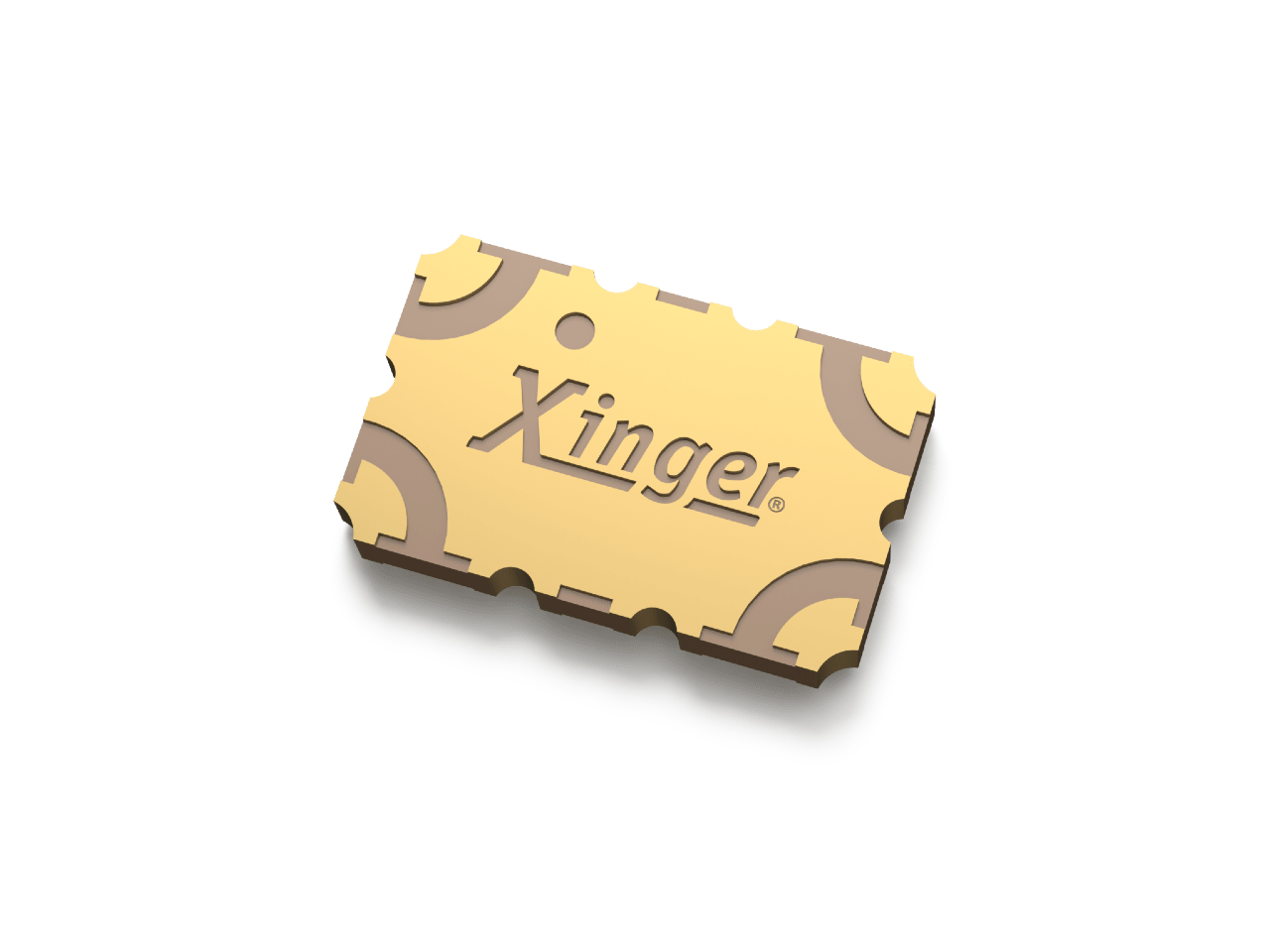

The XMC0812F1-20G is a low profile, high performance 20dB directional coupler, with a power rating of 50 Watts (AVG) and the XMC0812F1-03G is a low profile, high performance 3dB hybrid coupler, with a power rating of 50 Watts (AVG). Both of these couplers have a peak to average ratio of 12dB, with an ENIG Finish and are in our ultra-small 5mm x 3.2mm easy to use, Xinger style manufacturing friendly surface mount package. they are designed particularly for broadband use on medium power X-Band (8-12GHz) COTS Mil-Aero applications. Designed particularly for power and frequency detection, VSWR monitoring and power splitting. Both parts have been subjected to rigorous Xinger qualification testing and they are manufactured using materials with coefficients of thermal expansion (CTE) compatible with common substrates such as FR4, G-10, RF-35, RO4350 and polyimide. Available in 6 of 6 ENIG RoHS compliant finish. |
|
|
| |
|
|
| DC – 6GHz 1mm Square 1 Watt CW 50 Ohm Termination Made in USA |
|
|
| |
|
|

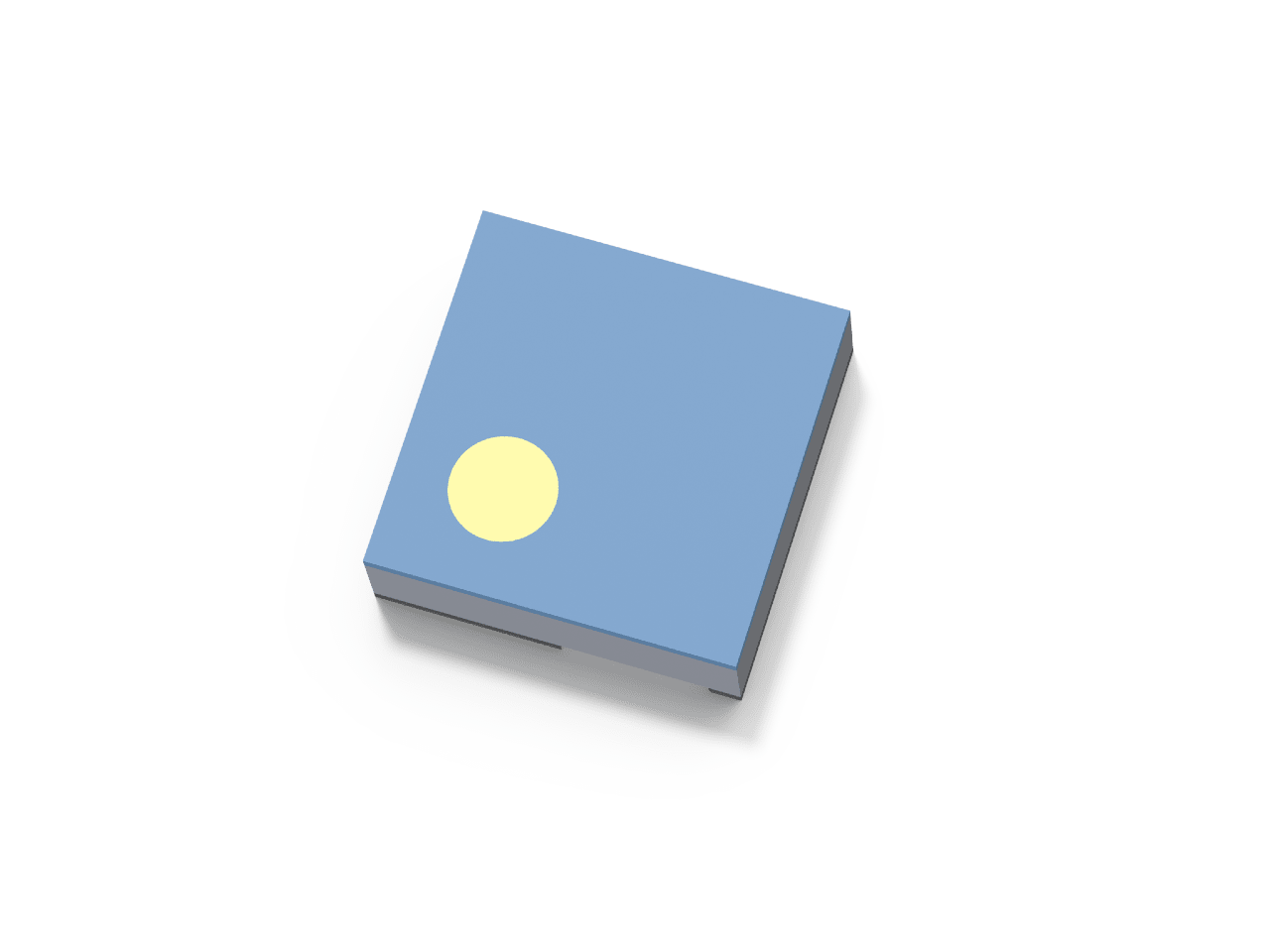

| The XRT1A50Z4 is a 0404 (1mm x 1mm) 1 Watt (avg) high performance Alumina (Al2O3) surface mount termination with a peak to average of 12dB. It is intended as a low cost alternative to Aluminum Nitride (AlN). The termination is well suited for Mil-Aero application from DC-6GHz and telecom applications in 4G & 5G Systems. This termination is also RoHS compliant and proudly made in USA. |
|
Applications:
• Mil-Aero from DC-6GHz
• Telecom in 4G & 5G Systems |
|
|
| |
|
|
| To see our new products, check out our "RF & Specialty Components New Products" page, where you can get an exclusive sneak peek into our latest product developments. This section aims to give you early access to new parts for evaluation, empowering you to experiment and verify product performance in your applications. We will add new parts to this section monthly, which will be transferred to our product pages when availability in our distribution channel has been established. Click the button below to see all the new parts in this section and request samples for evaluation |
|
|
| |
|
|
